New IGS for LNG/LPG carriers

LNG Industry,


LNG and LPG carrier tanks hold both a source of income and a potential source of danger. To avert the danger, inert gas systems (IGS) have been required on all new tankers over 20 000 dwt since 1978 – a move that has surely saved untold lives.

Yet with increasing demand, tighter delivery schedules, the constant need to optimise onboard footprints and numerous other factors, Alfa Laval believes IGS should go beyond fire safety to protect against other disasters that chisel away at the potential income for both shipyards and ship owners.

As demand for LNG increases, a significant upturn is expected in newbuild contracts for LNG carriers over 40 000 m3 during the next five years. To remain competitive, it is increasingly important for shipyards to streamline both budget and timing while still delivering high-quality vessels that offer ship owners safe, reliable and profitable operation. In anticipation of this, Alfa Laval is releasing the next generation of the Smit inert gas system for LNG and LPG carriers.

LNG and LPG carriers require very dry inert gas, making the inert gas systems installed on these tankers the most complex. Alfa Laval has spent decades optimising cargo safety under the Smit Gas name, delivering the first IGS for an LNG tanker in 1971. Today Alfa Laval is a leading supplier of low-pressure, low-dew-point inert gas generators typically used on LNG and LPG carriers. By taking a holistic view of IGS form and function, Alfa Laval aims to make a deeper difference for the bottom line with the new Alfa Laval Smit LNG/LPG.

Herben Heesen, Manager Marketing and Sales Inert Gas Systems for Alfa Laval, said: “Safety at sea has always been a main driver in Alfa Laval’s marine solutions and that is, of course, why we developed some of the world’s first IGS on oil tankers. Yet we never rest when it comes to innovation and product development. We’ve solved the safety problem. We want to solve more. And that’s exactly what we’re doing with the newest generation of our IGS. With the new Smit LNG/LPG, we’ve identified multiple ways in which the IGS directly and indirectly puts profits back into shipyards’ and ship owners’ pockets.”

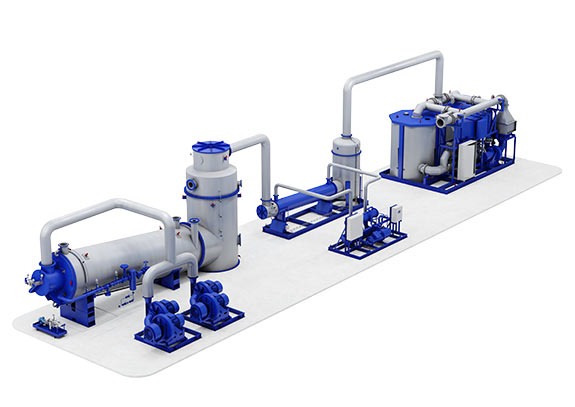

Alfa Laval Smit LNG/LPG – new modular inert gas system

Modularity

Alfa Laval Smit LNG/LPG inert gas systems are constructed with a new, unique modular design comprising four main components: generator, cooler, chiller and dryer unit. This modular design allows tailored deliveries to shipyards to meet individual building demands.

“With our modular system we have a configurable system, using only the components needed for each particular build,” explained Heesen. “In other words, you pay only for what you need. Plus, it makes delivery times quicker and installation easier. For example, the dryer can be delivered in two main components (barrels) for easy transport. Both main components are easy to set up in a complete system together.”

“Saving space is also an obvious benefit of the modularity,” continued Heesen. “On board, every centimetre makes a difference, and the new modular Smit LNG/LPG system offers a considerably smaller footprint.”

By using water as an intermittent heat transfer medium between chiller and cooler, a stable heat transfer is created under all load conditions. The dryer unit is redundant and provides additional security. The cooler, which has gas contact surfaces of SUS 316 for lifetime service, takes up minimal space due to the low-temperature output of the generator.

Reliable operation at sea

Smit LNG/LPG also takes advantage of Alfa Laval’s new 2Touch controller, which makes any aspect of the system available in just two touches of the screen. As well as offering a graphical overview of the system, it provides quick access to functions and data. Using the comprehensive data at its disposal, Alfa Laval Touch Control ensures thorough system optimisation. Naturally, it integrates seamlessly with other Alfa Laval automation systems and connects easily to ship control and communication.

All components for Smit LNG/LPG are engineered by Alfa Laval and manufactured at an Alfa Laval production facility that meets strict QA/QC standards, thereby safeguarding high product quality.

At the heart of the system is Alfa Laval’s Ultramizing® combustion system, which assures low-oxygen-level inert gas without any soot formation. Oil is atomised in an ultra-fine dispersion pattern with steam assist, resulting in reduced NOx output. The system utilises a highly efficient, two-stage oil/air mixing technique, which yields inert gas with 1% oxygen content possible and zero soot formation.

Besides safe combustion, the Ultramizing® burner design meets Alfa Laval’s stipulations for low emissions, as well as excellent operation during its entire life cycle. Horizontal installation also allows for easy maintenance, although maintenance is seldom required.

On-time delivery

With the largest installed base in the world for IGS, Alfa Laval has always prioritised fast turnaround time for both sales and service, offering a global network of experts. The new-generation Smit LNG/LPG inert gas system gives the assurance of that reliable network, with a focus on being in place as needs change for LNG/LPG.

“For both shipyards and ship owners, every day spent waiting – whether it’s for quotations, deliveries or spare parts – costs them, both in profits and in reputation,” said Heesen. “That’s why we’ve always worked so closely with our customers. We want to make sure they never need to wait unnecessarily. As we see conditions shifting for LNG/LPG, we make sure to adapt – taking strategic steps to ensure we continue to offer a hassle-free process from beginning to delivery to commissioning.”

For shipyards, Alfa Laval has strategically placed local sales support and production facilities worldwide specifically to meet the growing demand for LNG and LPG systems. That means quicker quotations, streamlined order handling and just-in-time delivery.

Training is conveniently available on board or at customer-specified locations. In-house operator training is also available in Alfa Laval’s facilities in the Netherlands.

From the time of commissioning and initial training, Alfa Laval continues to stay in close contact with ship owners and operators worldwide. The company supplies OEM spare parts and carries out inspections, service, repairs, retrofits and upgrades on all their inert gas systems anytime, anywhere.

Combining multiple benefits makes all the difference

With over 4200 systems supplied, Smit Gas has the largest installed base in IGS in maritime today. Now, the new-generation Smit inert gas system is poised to make an even deeper difference for the LNG and LPG tanker industry. The reason is that Alfa Laval manages to focus on important features and services which all build on each other to achieve a common goal: more profitable operation with utmost safety.

“The biggest benefits aren’t derived from any one feature of the new Smit LNG/LPG inert gas system, but all of them combined,” said Heesen. “Altogether, with Alfa Laval’s proven quality and local expert support, the new Smit LNG/LPG inert gas system is the most profitable choice both for shipyard and ship owners.”


Adapted from press release by Ted Monroe
